Multi-stranded External Brushless Winding Machine for AC3-phase 220V Energy Motor

Name: Multistranded External Brushless Winding Machine for AC3phase 220V Energy Motor
Brand: PingSheng
Price: 49 USD

China Multi-stranded External Brushless Winding Machine for AC3-phase 220V Energy Motor wholesale

Condition : New

Max. Load (KG) : 10 KG

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Engine, Motor

Coil Type : Copper wire

Length of Axis (mm) : 1 mm

Center Height (mm) : 2 mm

Max.Transformer Capacity(kVA) : 5 kVA

Place of Origin : Guangdong, China

Brand Name : PingSheng

CNC or Not : CNC

Motor Power (kw) : 7

Weight (KG) : 600

Dimension(L*W*H) : 3600mm*1400mm*1800mm

Wire Diameter Range (mm) : 2.6 - 90 mm

Warranty : 1 Year

Key Selling Points : Patented Product

Applicable Industries : Manufacturing Plant

Showroom Location : None

Number of stations : Single station or double station

Supply voltage : AC3-phase 380V or AC3-phase 220V

Rated power : 7KW

Pneumatic pressure : 4.5KG-6KG

Maximum speed : About 4S a turn

Controller : Motion control system

Servo motor : 10 axes full servo

Low voltage accessories : ABB

Pneumatic parts : AirTAC/Festo

Application : Wheel motors,robot drive motors,large model motors,new energy motors

Price : $49,999.99/sets 1-2 sets

MOQ : 1

Contact Now

Product Overview

Multi-stranded External Brushless Winding Machine for AC3-phase 220V Energy Motor

PRODUCT SPECIFICATIONS

Overall dimension	3600(L) x1400(W) x1800(H)mm
Weight	About 600 KG
Number of stations	Single station or double station
Input power	AC3 phase 380V or AC3 phase 220V
Pneumatic pressure	4.5KG-6KG
Rated power	7KW
Maximum speed	About 4S a turn
Controller	Motion control system
Servo motor	10 axes full servo
Tension parts	Centralized control
Application	Wheel motors,robot drive motors,large model motors,new energy motors, etc.

FEATURES AT A GLANCE

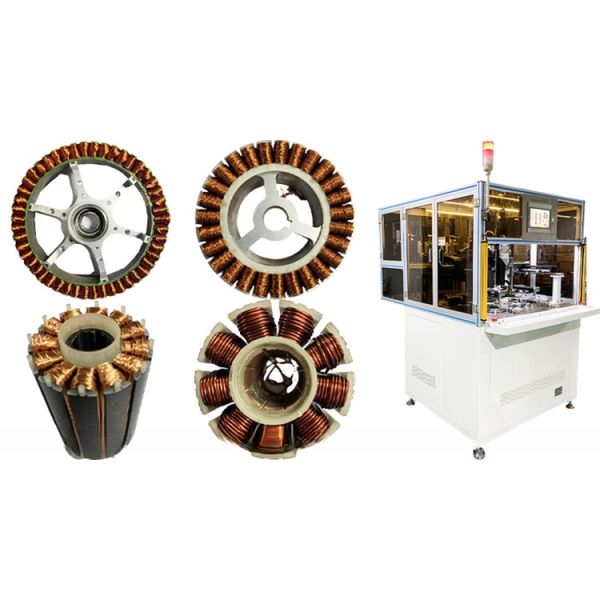

Multi-strand Brushless External Winding Machine T191

1.Suitable for high power motors and new energy motors, such as wheel motors, robot drive motors, large model motors,etc.
2.Special outlet design, up to 50 strands can be wound together with a core slot of 2.5 mm, single strand diameter between 0.4 mm.

3.Maximum outer diameter of machinable products：300mm, minimum groove-2.6mm. Maximum height-90mm, number of slots more than 3 slots and 0.5 mm.

4.The machine uses a follower shaft and a wire nozzle angle adjustment mechanism to meet the maximum 50 strands of wire to be wound together.

5.A centralised tension take-up and feeding device and servo automatic adjustment to maximise the winding space.

6.All the electric control and mechanical parts of the equipment are made of first-line mainstream brands, winding flat.

7. The main structure of the equipment adopts one-piece modular casting, with high strength and good stability.

8. Adopt aluminum profile safety shield, safe, simple and beautiful.

PRODUCT CONFIGURATION
